Since the cam chain replacement is almost done I addressed the next thing.
Replacing that messy foam pre-filter with Pyndon’s kit.

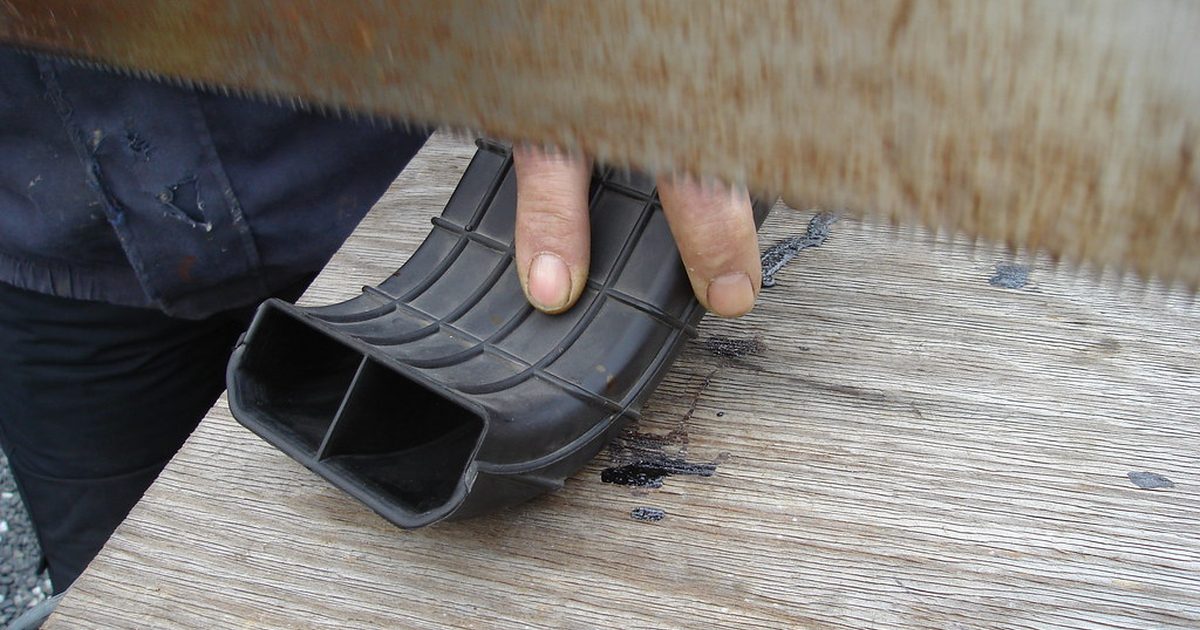

Snorkel had to be cut:
Parts of the ridge inside had to be removed, a scalpel and some WD-40 for lubrication worked fine, but I did break the cheap plastic handle:
Realized later it was better to have the hose clamp rotated so the tightening bolt was on the side:
ECU relocated:
The filter assembly:
Realized this wouldn’t work:
Probably says in the instructions that you need to get everything in place before the filter and stuff but I mainly used the pictures in that:
When unbolting it 2 guide rods came off, redid them all with more loctite:
Still can’t see the breather hose being possible to connect:
Quite big gap in the front:
Trimmed away a little more from the snorkel:
Time to cut out the bottom of the glove box:
Didn’t work all to well with the dremel it mostly melted the plastic:
So changed to a saw blade and gloves for protection:
Needs some more trimming at the edges but I’m getting there, had to give up for the day:
After a little use of the prefilter I had it apart to check on the filter, as u can see i relocated the crankcase breather hose and was worried I’d get oil into the filter:
But the filter is clean if any oil gets there it gets sucked into the trumpet anyways:
